Rugged Tablet Docking Station: Interface Extension Options Including All-in-One Cable and M12 Connector

Key Takeaways

• All-in-one cables work best for low-cost vehicle installs, pilot projects, and field-Service scenarios where simplicity and quick replacement matter more than integrated mounting—typically priced $50-150 per unit.
• Rugged tablet docking stations suit fixed vehicle mounts and desk stations where operators frequently remove the tablet, offering mechanical retention, port replication, anti-theft locking, and reduced connector wear over multi-year deployments.
• M12 connectors fit harsh, high-vibration environments like mining, agriculture, and rail, where IP67-IP69K sealing and threaded locking are required to survive washdowns, mud, and continuous machinery vibration.
• Interface extension enables a rugged tablet to connect simultaneously to CAN Bus, RS232, Ethernet (RJ45/M12), wide-voltage power, cameras, GNSS antennas, and sensors without exposing fragile built-in ports.
• B2B buyers should evaluate mounting method, power input range (e.g., 9-36V DC), vibration levels, IP rating requirements, and spare-part strategy when choosing between cable, dock, or M12 solutions.
• Kcosit provides rugged tablets, vehicle-mounted tablets, docking stations, all-in-one cables, and M12 interface options that can be customized for fleet, warehouse, industrial, and field deployments.

Introduction: Why Rugged Tablet Interface Extension Matters

In trucks, forklifts, construction equipment, and outdoor field work, a rugged tablet must connect reliably to power and peripherals—sensors, cameras, networks, vehicle buses—throughout demanding shifts. A European delivery truck driver operating a 12.1-inch vehicle-mounted rugged tablet needs stable 24V power, CAN Bus access for engine diagnostics, and GNSS connectivity for navigation, all while enduring 10-15G vibrations per ISO 16750-3 standards.

Rugged tablet interface extension is the practical method for bringing all necessary signals (power plus data) from the vehicle or machine into the tablet via an all-in-one cable, a docking station, or industrial connectors like M12. Many rugged tablets feature sunlight-readable displays, which enhance visibility in outdoor conditions, making them suitable for fieldwork and industrial applications—but their built-in USB-C ports alone cannot handle simultaneous CAN Bus, RS232, Ethernet, and 65W charging without accessory hardware.

Common platforms in this space include Dell Latitude Rugged Extreme tablets like the Latitude 7230 Rugged, rugged Windows tablets, vehicle-mounted Windows and Android tablets, and industrial tablets such as Kcosit models. This article compares three main interface extension methods, provides a buyer-focused checklist, and examines real applications across fleet management, warehouse operations, construction, mining, and agriculture.

What Is Rugged Tablet Interface Extension?

Interface extension is how a rugged tablet exposes additional industrial I/O and power beyond its built-in ports while preserving IP rating and durability. Rugged tablets are designed to withstand harsh environments and are often rated with IP protection for dust and water resistance, as well as MIL-STD standards for durability—but their standard USB-C or micro-HDMI ports fall short when RS232, CAN Bus, discrete I/O, GNSS antennas, and locked-in power feeds are needed simultaneously.

Consider typical deployment environments:

• A 12.1-inch vehicle-mounted rugged tablet in a European delivery truck requiring 9-36VDC input and J1939 CAN access
• A Windows rugged tablet on a US warehouse forklift connecting to legacy RS232 barcode scanners
• An Android rugged tablet on Australian agricultural machinery, needing IP69K sealing against dust and water spray

The three main extension formats addressing these needs are:

1. All-in-one vehicle/desk cables – Multi-tail harnesses with power, USB, serial, and Ethernet breakouts
2. Rugged tablet docking stations – Mechanical cradles with integrated charging, port replication, and mounting
3. Sealed industrial connectors (M12) – Threaded, waterproof connectors for data and power in extreme environments

Interface extension also influences serviceability, installation time, and total cost of ownership over multi-year deployments across fleets of 100-1000 devices.

What Is an All-in-One Cable for Rugged Tablets?

An all-in-one cable is a single ruggedized harness that plugs into the tablet’s system port or POGO interface and breaks out to multiple connectors—DC-IN, USB, RS232, RJ45 Ethernet, and sometimes GPIO or ignition sense lines.

A typical configuration includes:

• One sealed tablet-side plug (often 30-50 pin POGO or Hirose connector)
• Multiple tails: 9-36V DC power leads, DB9 RS232 for legacy serial devices, RJ45 for Ethernet, USB-A for peripherals like barcode scanners
• Polyurethane jacketing rated for 100,000+ flex cycles per UL 758 standards
• Optional CAN-H/L or OBD-II integration for vehicle diagnostics

Advantages for buyers:

• Lower hardware cost ($50-150) compared to full docking stations ($200-600)
• Field-replaceable in approximately 5 minutes
• Minimal mechanical components
• Compact footprint for tight spaces like small forklifts or service vans

Limitations:

• No integrated lock or theft deterrence mechanism
• Less physical stability than a dock for touch input during vehicle motion
• More exposed cabling inside the vehicle, prone to vibration-induced fatigue
• Usually, no pass-through RF or advanced port replication

Best-fit scenarios:

• Temporary installations or pilot projects
• Smaller fleets (under 50 units)
• Field-service technicians carry tablets on foot, but occasionally plug into vehicles or test benches
• Equipment with moderate vibration levels (under 10G)

What Is a Rugged Tablet Docking Station?

A rugged tablet docking station is a specialized hardware base designed to secure, power, and expand the functionality of industrial-grade tablets. It mechanically holds the tablet via a fixed cradle, provides charging through a POGO or proprietary high-pin connector, and replicates ports for harsh, high-vibration use.

Docks are constructed from heavy-duty materials like CNC-machined aluminum or high-strength polycarbonate, enabling them to survive impacts up to 50G in demanding deployments. Rugged tablet docking stations are designed to withstand harsh environments, often featuring durable materials and construction to ensure reliability in demanding work conditions.

Key dock features include:

• Integrated 12-36V wide-range DC power input
• Automatic charging when docked
• Multiple USB ports (USB 2.0/3.x)
• RS232/RS485 serial connections
• CAN Bus interfaces for vehicle diagnostics
• RJ45 Ethernet
• HDMI output for external displays
• Optional AHD camera inputs and GNSS antenna pass-through
• Certain accessories or security features may be included with the docking station, such as key locks or mounting hardware

Many docking stations for rugged tablets provide multiple connectivity options, including HDMI and USB ports, to support various peripherals and accessories like external monitors, keyboards (including an external keyboard or keyboard dock), and printers.

Types of docking stations:

• Vehicle-mounted docks for trucks, buses, forklifts, and construction equipment
• Desktop or wall-mount docks for control rooms, maintenance offices, and dispatch centers

Docking stations for rugged tablets often feature a low-profile design to minimize space usage in vehicles, with some models including security features like key locks. These docks are essential in industries where portability is needed, but stationary productivity is required for most of the workday.

Benefits over bare tablets:

• Safer touch operation while the vehicle is moving (reduces input errors up to 40% per UX studies)
• Reduced connector wear (40-60% less port degradation over 5 years)
• Faster grab-and-go removal (2-10 seconds)
• Professional cable management with strain relief
• Support for devices like Dell Latitude 7230 Rugged Extreme or Kcosit vehicle tablets as full in-cab terminals

Docks can route cellular (4G/5G), Wi-Fi, or GPS signals from the tablet to a high-gain external antenna mounted on a vehicle, improving signal reception in remote areas. Some advanced docking stations offer quad RF pass-through or quad port replication, allowing simultaneous handling of four RF connections or channels, including HDMI, for comprehensive connectivity in rugged or vehicle deployments.

All-in-One Cable vs Docking Station: Key Differences

Many B2B buyers start their evaluation by choosing between an all-in-one cable and a full docking station for their rugged tablet or vehicle-mounted rugged tablet projects. The table below summarizes critical differences:

Aspect	All-in-One Cable	Docking Station
Typical Cost	$50-150	$200-600
Portability	High (0.5kg, foldable)	Low (2-5kg, fixed mount)
Installation Time	15-30 minutes	45-90 minutes (includes mounting)
Vibration Resistance	Moderate (5-10G)	High (15-50G with proper mounting)
Security/Locking	None	Key locks, latches (reduces theft 65-70%)
Cable Management	Exposed tails	Integrated strain relief
Tablet Removal Time	Under 5 seconds (unplug)	2-10 seconds (button release)
Port Protection	Limited	Extends tablet port life 2x
Trucks/Buses	Functional but less stable	Recommended
Forklifts	Suitable for compact spaces	Compact dock variants available
Office/Desk Use	Requires a separate stand	Integrated desktop docks
TCO (5yr, 100 units)	Higher maintenance (15-20% more field repairs)	Lower wear, fewer replacements

Key considerations:

All-in-one cables are more portable and cheaper upfront, but rely on separate mounting hardware and offer no anti-theft protection. Docking stations create a more professional operator experience with integrated charging, compatibility with VESA or RAM-style mounting systems, and reduced connector wear.

In large fleets—200 delivery trucks or 80 forklifts—reduced wear on tablet ports and faster swap-outs often justify the higher upfront dock cost over the deployment lifecycle. Field data from fleet deployments shows docks can reduce operational downtime by 28% compared to cable-only setups.

Practical advice: System integrators should prototype both options in one or two vehicles, measuring installation time, user feedback, and failure rates before finalizing a large procurement order. Stock spare parts for whichever solution you choose.

Where Does the M12 Connector Fit in Rugged Tablet Deployments?

M12 connectors are threaded, circular industrial connectors (IP65-IP69K rated per IEC 61076-2-101) used for Ethernet, power, I/O, and sensors in harsh environments like mining, rail (EN50155 compliant), and outdoor agriculture equipment.

A rugged tablet with M12 connector—whether M12 Ethernet (X-coded for 10Gbps Cat6a) or M12 DC-IN (K-coded for 12A/630V)—can plug directly into existing industrial wiring looms on machinery. This reduces custom cabling by up to 50% and improves sealing against water, oil, and dust.

Mechanical and reliability benefits:

• Vibration-resistant locking threads (rated for 20G RMS vibration)
• Survives 1000+ mate/unmate cycles
• Defined pinouts per IEC 61131 standards
• Robust strain relief for continuous equipment movement
• Operating temperature range: -40°C to 125°C

M12 vs standard connectors:

Feature	M12 Connector	Standard RJ45	Barrel DC Jack
IP Rating	IP67-IP69K	IP20	IP20-IP44
Vibration Resistance	20G RMS	Poor	Poor
Mate/Unmate Cycles	1000+	200-500	500-1000
Locking Mechanism	Threaded metal	None/clip	None
Cost	Higher	Lower	Lower

M12 connectors work best for OEM machinery integrations, excavators, harvesters, drilling rigs, and rail applications in sectors like energy and mining operations. They’re often combined with passive brackets or simplified docks rather than replacing full docking stations—especially where both IP67 connection and quick tablet removal are required.

Note: M12 adds component cost and requires compatible cabling. Evaluate whether your deployment truly needs IP69K washdown capability or if well-designed docking stations with proper sealing suffice.

Interface Options B2B Buyers Should Check

Choosing between cable, docking station, and M12 is only half the decision—buyers must also verify that the right signals and interfaces are available on the rugged tablet and its extension solution.

Data Interfaces

Interface	Description	Common Use Cases
USB 2.0/3.x	480Mbps-10Gbps, 500-900mA per port	Keyboards, printers, barcode scanners
RS232	DB9, ±15V signaling, up to 115.2kbps	Legacy serial sensors, PLCs, older peripherals
RS485	Half/full duplex, 1200m range, 32 multi-drop nodes	Industrial sensors, building automation
CAN Bus	ISO 11898-2, 1Mbps, J1939 vehicle diagnostics	Truck/bus telematics, engine data
GPIO	5-30VDC, opto-isolated inputs/outputs	Door sensors, PTO status, discrete I/O

Networking Options

• RJ45 Ethernet: Standard GigE, optional PoE (802.3at 30W) for connected devices
• M12 Ethernet: X-coded for waterproof/vibration-resistant industrial networks
• Dual Ethernet ports: Some industrial tablet docking stations provide separate back-haul and device LANs

Power Considerations

• DC-IN: Wide voltage input (9-36VDC) suitable for 12V trucks and 24V forklifts
• Ignition sense: Delayed shutdown (10-30 seconds) for safe power cycling
• Over-voltage/over-current protection: Handles transients up to 60V per ISO 7637

Auxiliary Connections

• AHD camera input: CVBS 720p/1080p for rear-view or side-view cameras
• GNSS antenna input: SMA pass-through for external high-gain antennas (improves accuracy to under 2m CE)
• Barcode scanning: USB HID or serial integration
• NFC/RFID: 13.56MHz ISO14443 for access control and asset tracking

When evaluating options, confirm all required interfaces can connect simultaneously—some extension solutions multiplex ports and may have conflicts.

Which Option Is Best for Vehicle-Mounted Rugged Tablets?

Requirements differ significantly between long-haul trucks, city buses, forklifts, agricultural machinery, and heavy construction equipment—even though all qualify as vehicle-mounted tablet deployments.

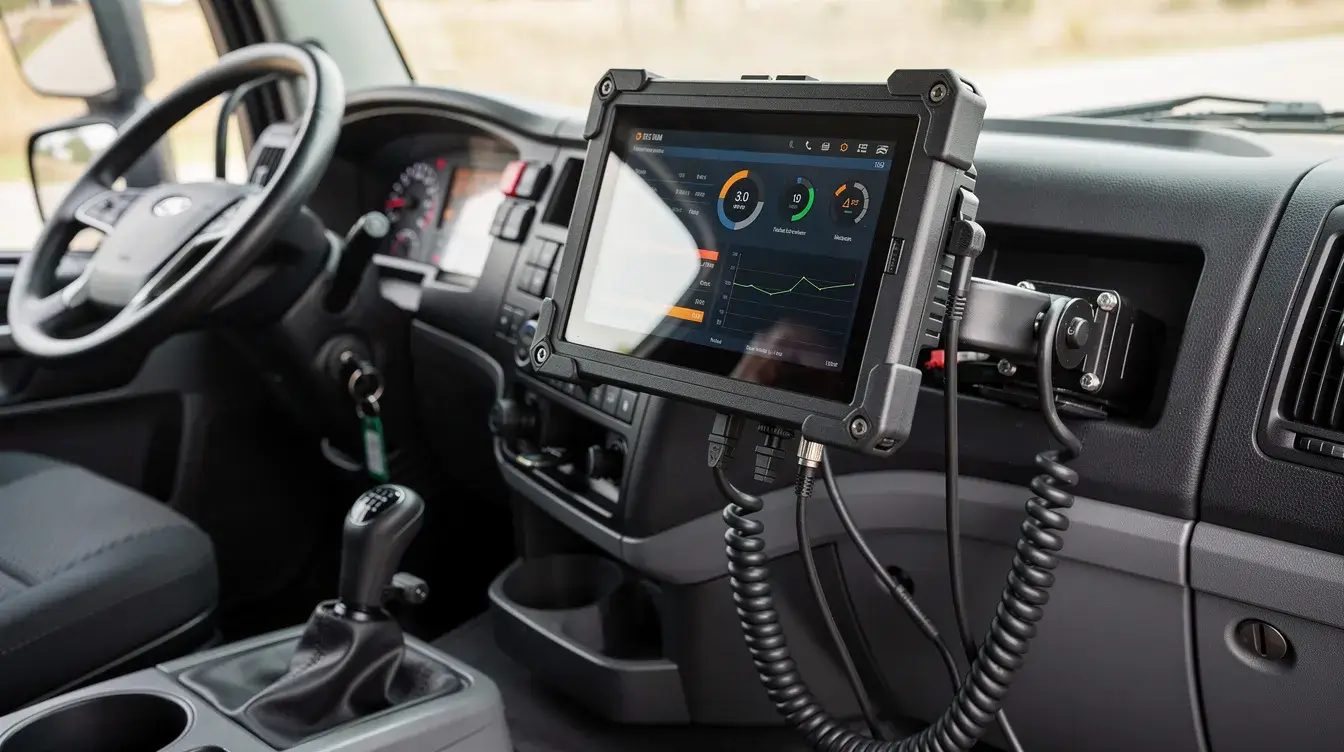

Trucks and Buses

Recommendation: Rugged tablet docking stations with wide-input DC power (9-36V), CAN Bus or RS232 ports, GNSS antenna feed, and optional AHD camera input.

These applications demand stable driver interaction with tablet control buttons, anti-theft key locks, and professional cable routing. Fleet telematics data shows vehicle docks reduce accidents by up to 15% through stable terminal positioning and reduced driver distraction.

Forklifts and Warehouse Vehicles

Recommendation: Compact vehicle docks or reinforced all-in-one cables, depending on space constraints.

Focus on RJ45 or Wi-Fi connectivity to warehouse management systems, powered USB for barcode scanners, and vibration handling for industrial floors. Studies show forklift-mounted docks improve pick efficiency by 20% through faster system access and reduced docking time.

Agriculture and Construction Machinery

Recommendation: Docking station and M12 connector combinations for maximum durability.

These environments require electronics that withstand mud, water spray, UV exposure, and severe vibration while allowing quick tablet removal for field inspections, similar to other rugged tablet industry solutions used across demanding sectors. John Deere harvesters and Cat excavators commonly use IP69K-rated connections.

Public Safety and Utilities

Recommendation: Removable rugged tablet with vehicle dock for undock-on-scene workflows.

Officers and technicians need to undock the tablet at job sites, collect signatures or photos, then re-dock for navigation, dispatch messaging, and charging. Docks with quick-release mechanisms support this workflow while maintaining safety during transport.

Which Option Is Best for Field Workers and Industrial Teams?

Not all rugged tablets operate exclusively in vehicles. Many serve technicians, inspectors, warehouse pickers, and maintenance staff, moving between indoor and outdoor locations.

Mobile Field Service

For maintenance technicians and utility inspectors, recommend rugged tablets with all-in-one cables or compact vehicle docks in service vans, plus lightweight desktop docks in offices for charging and network connection at shift start and end.

Rugged tablets often come with long battery life to support extended use in the field, which is critical for industries such as logistics, construction, and public safety—enabling full-shift operation between docking opportunities.

Construction and Mining Teams

Emphasize rugged tablets with M12 connectors and sealed all-in-one cables that plug into fixed panels on site, supporting RS485, CAN, or industrial Ethernet connections to local equipment. The durability requirements here often exceed standard fleet applications.

Warehouses and Logistics Hubs

Vehicle-mounted rugged tablets on forklifts combined with desk docks in shipping offices ensure seamless transitions between vehicle operations and administrative tasks. Installing dock stations at shift-change areas reduces queue time and keeps devices charged.

Ergonomic and Safety Considerations:

• Avoid dangling cables that create trip hazards (OSHA guidelines cite 25% reduction in incidents with proper cable management)
• Keep connectors protected from impacts
• Ensure the chosen interface option allows quick tablet removal in emergencies or to prevent theft

Buyer Checklist: How to Choose the Right Rugged Tablet Interface Extension

Use this checklist during project planning to ensure you’ve considered all critical factors:

Deployment Environment

• [ ] Vehicle type: truck, bus, forklift, tractor, or stationary machine?
• [ ] Indoor, outdoor, or mixed exposure?
• [ ] Temperature range (standard -20°C to 50°C, or extreme -40°C to 70°C)?
• [ ] Moisture/dust levels (IP65 minimum, IP67 recommended, IP69K for washdowns)?
• [ ] Vibration levels: moderate (<10G) or severe (10-20G per ISO 5349)?

Mounting and Usage Style

• [ ] Fixed vehicle mount or carry-on portable use?
• [ ] How often will operators remove the tablet? (>5x daily suggests dock)
• [ ] Anti-theft locking required?
• [ ] Available space for docking stations vs. simple brackets?
• [ ] VESA or RAM-style mounting compatibility needed?

Interface Requirements

• [ ] List all needed signals: USB, RS232, RS485, CAN Bus, GPIO
• [ ] Networking: RJ45 Ethernet, M12 Ethernet, Wi-Fi, cellular?
• [ ] AHD camera input for vehicle cameras?
• [ ] GNSS/GPS antenna pass-through?
• [ ] NFC, RFID, or barcode scanner integration?
• [ ] Must these connect simultaneously, or can they be multiplexed?

Power Considerations

• [ ] Vehicle battery voltage range (12V nominal, 24V nominal)?
• [ ] Wide-input support (9-36VDC covers most applications)?
• [ ] Ignition sense for safe power-up/shutdown?
• [ ] Fast charging requirements?
• [ ] Proper fusing and over-voltage protection?

Maintenance and Lifecycle

• [ ] Estimated deployment duration (3, 5, or 7+ years)?
• [ ] Spare parts budget (recommend 10-15% of initial hardware)?
• [ ] Vendor lifecycle support and product availability guarantees?
• [ ] Cross-compatible accessories between tablet generations?

Kcosit Rugged Tablet Interface Extension Solutions

Kcosit specializes in rugged tablets and industrial mobile computing for logistics, fleet management, warehouse operations, manufacturing, construction, mining, agriculture, and public safety deployments.

Kcosit offers rugged tablets and industrial devices, including rugged Windows and Android tablets and vehicle-mounted models, with support for:

• Docking stations with wide-voltage input (9-36V DC), charging, lockable mechanisms, and port replication
• All-in-one cables for cost-effective vehicle and desk connections
• Industrial I/O options: RS232, RS485, CAN Bus, GPIO, multiple USB ports
• Networking: RJ45 Ethernet and, on selected models, M12 connectors for Ethernet or DC-IN
• Auxiliary interfaces: GNSS antenna pass-through, AHD camera input, barcode scanning, NFC, RFID

Kcosit docking station solutions include vehicle docks suitable for fleet management terminals, forklift terminals, and bus or truck terminals, aligning with broader rugged tablets for automotive industry use cases. The product lineup supports quick tablet removal, anti-theft features, and professional cable routing.

Kcosit works with B2B buyers, integrators, and OEM/ODM customers to tailor interface configurations—adding CAN Bus, extra serial ports, GNSS antennas, or RFID/NFC modules—so the rugged tablet functions as an integrated industrial terminal rather than a consumer device.

Explore Kcosit rugged tablets for vehicle-mounted, warehouse, and field deployment applications.

FAQ

Can I mix docking stations and all-in-one cables in the same deployment?

Many fleets standardize on the same rugged tablet model but use different interface extensions across their operation. Vehicle docks work in trucks, all-in-one cables serve smaller vans or test benches, and desktop docks support office workflows—all without software changes because the tablet’s system connector remains consistent.

Mixing methods is practical, but confirm that the tablet’s firmware and connector version support all planned accessories. Document which vehicles or roles use which accessory type to simplify maintenance, training, and troubleshooting. Stock spare parts for each extension type you deploy.

How should I plan for spare parts and lifecycle support?

Estimate your deployment lifecycle (typically 5-7 years for fleet tablets) and budget additional docking stations, cables, and mounting hardware to cover accidental damage and new vehicle additions. A common guideline is 10-15% spare inventory of each accessory type.

Ask vendors about product lifecycle policies, last-time-buy notifications, and cross-compatible accessories between tablet generations. Standardized wiring looms and mounting patterns across your fleet keep swap-outs fast and predictable, reducing technician training requirements.

Can I retrofit a rugged tablet docking station into older vehicles or machines?

Retrofits are common in fleet deployments. Docks mount via VESA adapters or custom brackets, connect to existing 12V or 24V power lines with proper fusing, and can tie into CAN Bus or RS232 if the vehicle exposes those interfaces.

Before finalizing a docking solution for older equipment, conduct a site survey to check available mounting space, cable routing paths, antenna mounting options, and power quality. In some retrofits—particularly when space or structural mounting points are limited—all-in-one cables or M12-based panels may prove simpler than full vehicle docks.

What if my requirements change and I need additional interfaces later?

Select rugged tablets and docks with interface headroom—extra USB, serial, or GPIO ports—so new peripherals like cameras, sensors, or RFID readers can be added without complete hardware replacement.

Some vendors, including Kcosit, provide custom I/O variants or expansion modules for project-specific needs and also offer rugged tablets for defense industry scenarios where future expansion is critical. Discuss potential future requirements during initial planning to align with manufacturing lead times and any certification requirements. Document likely future use cases, such as CAN Bus telemetry or external RFID readers, so your initial docking station design anticipates these expansions.

Do I always need a rugged tablet with M12 connectors for outdoor work?

M12 connectors benefit extreme environments with frequent washdowns, heavy vibration, or standardized industrial Ethernet cabling—but they’re not mandatory for all outdoor deployments.

Many logistics, light construction, and field-service applications operate successfully with well-designed docking stations and sealed all-in-one cables providing sufficient IP protection and strain relief. Evaluate your actual IP rating requirements, connector standards already used on your machinery, and serviceability expectations before deciding whether M12 connectivity is necessary or simply a nice-to-have feature that adds cost and complexity.
