M101 Rugged Touch Screen Monitor with 10.1-Inch 1500-Nit Display and IP65 Front Panel
M101 is a rugged touch screen monitor designed for industrial display applications requiring clear visibility, reliable operation, and flexible control. Featuring a 10.1-inch 1920×1200 display, 1500-nit high brightness panel, optional 10-point capacitive touch, IP65 front panel protection, and convenient menu control through side buttons or optional remote control, it provides a practical visual interface solution for industrial equipment and smart applications.
Key Configuration Highlights
• Display Size: 10.1-inch industrial LCD with 1920×1200 resolution
• Brightness: 1500-nit high-brightness display for clear visual output
• Touch Option: 10-point capacitive touch for interactive operation
• Protection: Metal housing with IP65-rated front panel protection
• Control Interface: Side buttons and optional remote control for menu operation
• Connectivity: HDMI, VGA and USB-C video input options
• Mounting: 75mm VESA mount support for flexible installation
• Application: Industrial control, equipment dashboards and smart displays
Product Sections
Product Detail
Explore the core performance, rugged design, interfaces, power, mounting, and software features of this device.
|
01
Display Performance
High-Visibility Industrial Display with Flexible Control
M101 delivers clear visual performance with a 10.1-inch LCD panel, 1920×1200 resolution, and 1500-nit high brightness for industrial display applications. The optional 10-point capacitive touch provides interactive operation, while integrated menu buttons and optional remote control offer convenient display adjustment and control.
|
Snapshot Label
Display Size
10.1-inch
Resolution
1920×1200
Brightness
1500 Nits High brightness screen
Touch Technology
10-point Capacitive Touch (Optional)
High Brightness Visibility
The 1500-nit display provides enhanced readability for industrial environments where operators need clear and consistent visual information.
Detailed Display Output
The 1920×1200 resolution delivers sharp image presentation for equipment interfaces, monitoring screens, and industrial applications.
Touch & Menu Control
Optional capacitive touch, side control buttons, and menu navigation keys provide flexible ways to operate and adjust the display.
Remote Display Management
The built-in infrared window supports optional remote control operation for convenient menu adjustment without direct button access.
01.
IP65 Front Panel Protection
02.
-20°C to 70°C Operation
03.
-30°C to 80°C Storage
04.
Metal Housing Structure
05.
50,000-Hour LED Lifetime
|
02
Industrial Protection
Durable Protection for Industrial Display Deployment
M101 is designed with a durable metal housing and front panel protection for industrial display environments. The IP65-rated front panel helps protect the display surface against dust and water projected from the front direction, while the wide operating temperature range supports reliable use in different industrial conditions.
IP65 Front Panel Scope
The front panel is rated IP65 for protection against dust and front-direction water projection in industrial display environments.
Wide Temperature Range
The monitor supports operation from -20°C to 70°C and storage from -30°C to 80°C for varied industrial conditions.
Metal Housing
The metal enclosure provides a durable structure for industrial display deployments requiring stable physical protection.
Industrial Panel Lifetime
The LED panel provides a 50,000-hour lifetime, supporting long-term display usage in industrial applications.
|
03
Interfaces & Connectivity
Flexible Connections for Industrial Display Integration
M101 provides multiple connection options for integrating with existing industrial equipment and visual systems. With HDMI, VGA, and USB Type-C inputs, the display supports flexible video connection methods, while DC power input and audio output simplify deployment across different industrial applications.
Interface Capability Area
HDMI Video Input
HDMI input provides digital video connection for industrial equipment, computers, and external display sources.
VGA Analog Input
VGA input supports connection with legacy industrial devices and systems requiring analog video output.
USB Type-C Connectivity
USB Type-C supports video signal, touch function, and power input through a single connection when supported by the connected device.
DC Power Input
The DC 12–24V power input supports integration into industrial power environments and equipment systems.
Audio Output
A 3.5mm earphone jack provides audio output capability for connected display applications.

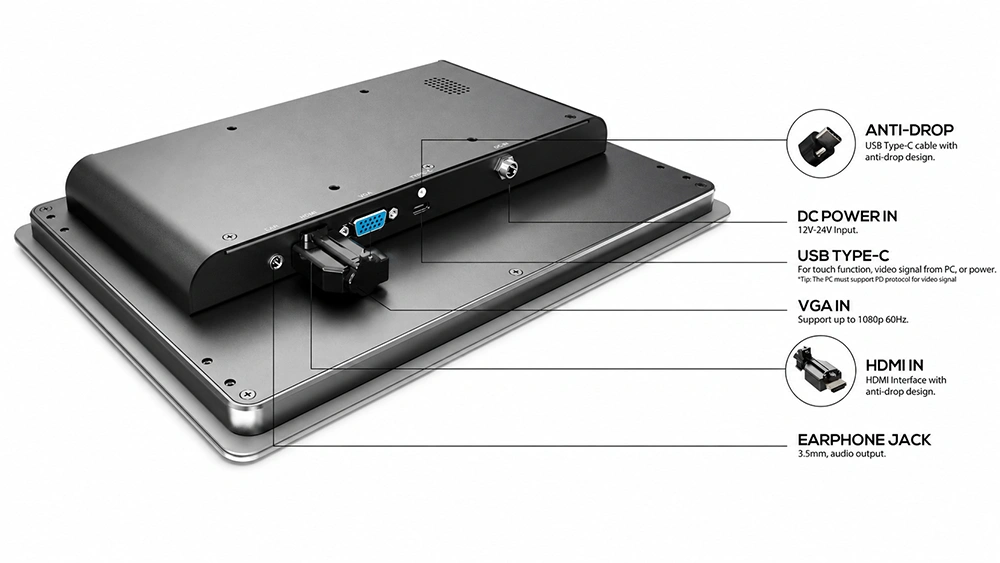

M101 Interface Layout
Secure HDMI Connection
HDMI Cable Lock
The optional HDMI cable lock helps secure the HDMI connection and reduce accidental cable disconnection during deployment.
Rear Interface Design
The rear interface layout provides convenient access to HDMI, VGA, USB Type-C, DC input, and audio connections for system integration.
|
04
Installation & Deployment
Flexible Mounting for Industrial Display Integration
M101 is designed for flexible equipment integration with a 75mm VESA mounting interface and embedded installation support. The display can be installed into industrial equipment using fixing screws, while the optional VESA 75mm bracket provides a convenient solution for desktop or standalone display deployment.
75mm VESA Mount
Panel Integration
Desktop Bracket Support
Mounting and Sealing Plan
Equipment Integration
The compact display design supports integration into industrial equipment, control stations, and custom display structures.
Embedded Panel Installation
The display can be integrated into equipment panels using the supplied fixing screw structure for a clean embedded installation.
75mm VESA Mount
The built-in 75mm VESA mounting interface supports compatible mounting solutions for industrial display deployment.
VESA Desktop Bracket
The optional VESA 75mm bracket enables desktop placement for applications requiring a standalone display setup.
Application Scenarios
See how this rugged device supports real-world industrial workflows across different industries.
Industrial Display Deployment Scenarios
M101 is designed for equipment manufacturers and system integrators requiring a compact industrial display with clear visual output and flexible integration. Its high brightness screen, optional touch capability, and industrial-ready design make it suitable for machine interfaces, equipment dashboards, and self-service display applications.
Industrial Control
Integrated into industrial control equipment as a visual operation interface. M101 provides clear display output for machine status, operating information, and equipment interaction in factory environments.
Dashboard Interface
Used as a dashboard display for vehicles, equipment, and specialized systems. The compact 10.1-inch display provides a clear interface solution for visual information presentation.
Smart Locker
Deployed in smart lockers and self-service equipment as an interactive display interface. The optional touch function enables convenient user operation and improves equipment usability.
Optional Modules & Accessories
Select optional data capture modules, expansion features, and compatible accessories to match your deployment needs.
Accessories for Flexible Display Deployment
M101 supports a range of accessories designed to simplify installation, operation, and connection management. From VESA mounting support to remote menu control and secure HDMI connection, these accessories provide practical options for different industrial display deployment requirements.
Optional
VESA 75mm Bracket
The VESA 75mm bracket provides a stable desktop mounting solution, allowing the display to be positioned conveniently for standalone display applications.
Optional
Remote Control
The remote control works with the built-in infrared interface to provide convenient menu adjustment and display setting control.
Optional
HDMI Cable Lock
The HDMI cable lock helps secure the HDMI connection and reduces accidental cable disconnection during equipment deployment.
Need help selecting the right modules and accessories?
Tell us your application requirements, and our team will recommend the most suitable options for your deployment.
Technical Specifications
Review key hardware, display, connectivity, power, and environmental specifications for project evaluation.
Procurement-Ready Technical Specifications
Review the key technical specifications of this device, including system performance, display, connectivity, wireless communication, power, and rugged protection, to support project evaluation and procurement decision
System & Computing
Product Model
M101
Product Type
10.1-inch rugged touch screen monitor
Display, Touch & User Input
Display Size
10.1 inch
Screen Resolution
1920 × 1200
Screen Brightness
1500 nits
Touch Panel
10-point Capacitive Touch (Optional)
Input Modes
HDMI / VGA / USB Type-C
Power, Battery & Installation
Battery / Power Source
DC Power Input
Runtime / Power Consumption
≤19W at 12V
Power Input
DC12–24V
Wide Voltage Input
DC12–24V
Charging / Adapter
12V 3A DC Adapter
Mounting / Carrying
75mm VESA Mount
Ruggedness & Mechanical Specifications
IP Rating
IP65 Front Panel
Operating / Storage Temperature
Operating -20°C to 70°C; storage -30°C to 80°C
Humidity
5%–95% non-Condensing
Dimensions / Weight
264 × 183 × 35.6mm; 1.31kg
Materials & Certifications
Metal Housing
Need the Full Product Specification Sheet?
Enter your email to receive the latest PDF datasheet for procurement review.
1 PDF Available
- Product Specification Sheet (PDF)
Frequently Asked Questions
Review common questions about configuration, interfaces, deployment, and customization before contacting our sales team.
- PRODUCT FAQ
Answers Before You Request A Quote
Review key questions about configuration, interfaces, mounting options, accessories, and customization before selecting the right rugged tablet for your project.
- 6 Key Questions
- Configuration Review
- Project Support
Need more details? Our team can help confirm the right setup for your project.
What is the display size and resolution of the M101 industrial display?
M101 features a 10.1-inch LCD display with a 1920×1200 resolution, providing detailed visual output for industrial interfaces, equipment dashboards, and monitoring applications that require clear information presentation.
Is the M101 suitable for applications requiring a high brightness display?
Yes. M101 provides a 1500-nit high brightness display designed for industrial environments where improved screen visibility is required. The high brightness panel helps maintain clear image viewing in demanding lighting conditions.
Does the M101 support touch operation?
Yes. M101 supports an optional 10-point capacitive touch panel, enabling interactive operation for equipment interfaces and applications that require direct user interaction with the display.
What interfaces are available for connecting the M101 to existing equipment?
M101 supports HDMI, VGA, and USB Type-C inputs for flexible connection with different video sources and equipment systems. It also includes a 3.5mm earphone jack for audio output applications.
How can the M101 be mounted into equipment?
M101 supports 75mm VESA mounting and embedded panel installation using fixing screws. A VESA 75mm bracket is also available for desktop display deployment.
What industrial applications is the M101 suitable for?
M101 is suitable for industrial display applications such as automation equipment, machine interfaces, industrial control systems, and equipment monitoring. Its high brightness display, optional touch function, and flexible integration options support different industrial interface requirements.
