  • original Kcosit K111J ELD Rugged Android Tablet PC MDT Forklift Mounted Terminal 10.1Inch MT6789 4GB RAM 4G LTE CAN BUS LAN CVBS

original Kcosit K111J ELD Rugged Android Tablet PC MDT Forklift Mounted Terminal 10.1Inch MT6789 4GB RAM 4G LTE CAN BUS LAN CVBS

stars, based on 0reviews
Price:
$488.80 / piece
Bundle
  • Standard No Battery
  • Standard ADD Battery
optional functions
  • 4GB RAM 64GB ROM
  • ADD RJ45 And Cable
  • ADD RS232 And Cable
  • ADD Can Bus N Cable
  • ADD Power Adapter
  • ADD Wide Voltage
Quantity: - + 1000items available
Contact Us

Item specifics

Brand Name:
Kcosit
Model:
K111J
Product Type:
Vehicle-Mounted Rugged Tablet PC
Interface Type:
USB,USB, RS232
Scanning Light Source:
Scan Element Type:
Scan Speed:
Products Status:
Stock
Operating System:
Android 12
Processor Manufacture:
 MT 6789
Processor Model:
 6 Arm® Cortex-A55 cores operating at 2.0 GHz
Display resolution:
1280x800
Touch Screen Type:
Capacitive Screen
RAM:
4GB
ROM:
64GB
Cell Capacity (Optional):
Optional
Battery Type (Optional):
Not Detachable
Cellular:
GSM/WCDMA/ 4G LTE (Optional)
SIM Card Quantity (Optional):
Single SIM Card
Supporting Language:
Can install any languages by Microsoft offical website
Tags:
Rugged Tablet PC, Rugged Devices, Rugged Tablets, Industrial Tablet, Waterproof Tablet, IP 67 Waterproof Tablet, Ultra-Rugged Tablet PC, Rugged tablet With barcode scanner, Rugged Device Manufacturer, Vehicle-Mounted Tablet PC
Kcosit Rugged Devices --->Email: sales@kcosit.com

original Kcosit K111J ELD Rugged Android Tablet PC MDT Forklift Mounted Terminal 10.1Inch MT6789 4GB RAM 4G LTE CAN BUS LAN CVBS

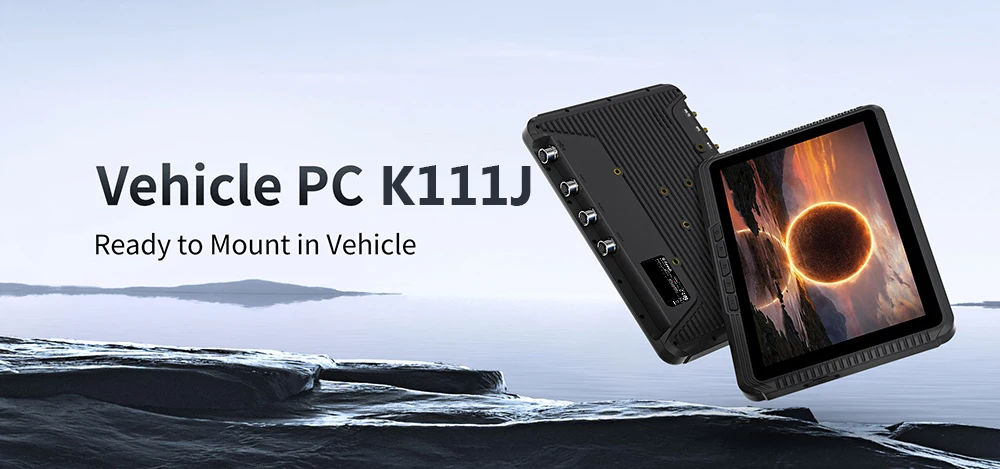

 10 inch Vehicle-mounted Terminal
Standard (With GPS+ WiFi+ 4G LTE+No Battery+NO Camera)

  • Waterproof Grade:  IP65
  • Operation System :  Android 12
  • RAM+ROM: 4GB RAM+64GB ROM
  • CPU: MT 6789,2 Arm® Cortex-A76 cores operating at 2.2 GHz,                                                                 6 Arm® Cortex-A55 cores operating at 2.0 GHz
  • Display Resolution : 10.1 inch 16:10   800*1280 IPS   700 Nits
  • Built-in    2.4G+5.8G WiFi ,GPS Module, Bluetooth Module
  • Battery Capacity: 2000mAH NOT Replaceable  (Optional)
  • Sim Card Quantity:  Single SIM Card
  • Band Mode :
  • LTE Cat 4
    GSM:2+3+5+8
    WCDMA:1+2+5+8
    TD-S:34+39
    TDD:38+39+40+41N(2535mhz~2655mhz)
    FDD:1+2+3+4+5+7+8+17+20+28a+28b
  •   Kcosit K111J
    Optional Functions    		2000mAh Battery
    NFC
    PORT1 (M12-12) (optional) 1000M network interface,
    Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet)= Optional : ADD RJ45 And Cable
    PORT2 (M12-12) (optional)
    RS232 *1+RS232/RS485 *1,
    9PIN DB9 full function serial port RS232;
    3PIN data transmission RS485/3PIN data transmission RS232= Optional : ADD RS232 And Cable
    PORT3 (M12-12) (optional)
    USB 2.0 *1+USB 2.0 (Default) / CAN*1+CVBS*1
    USB2.0 standard interface *2; Optional CAN for customer debugging= Optional : ADD Can Bus N Cable
     Cigarette lighter adapter
    19V3.42A Cigarette Lighter Adapter
     Power adapter=Optional : ADD Power Adapter
    19V3.42A  DC φ5.5 power adapter
     Power adapter cable
    Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements.

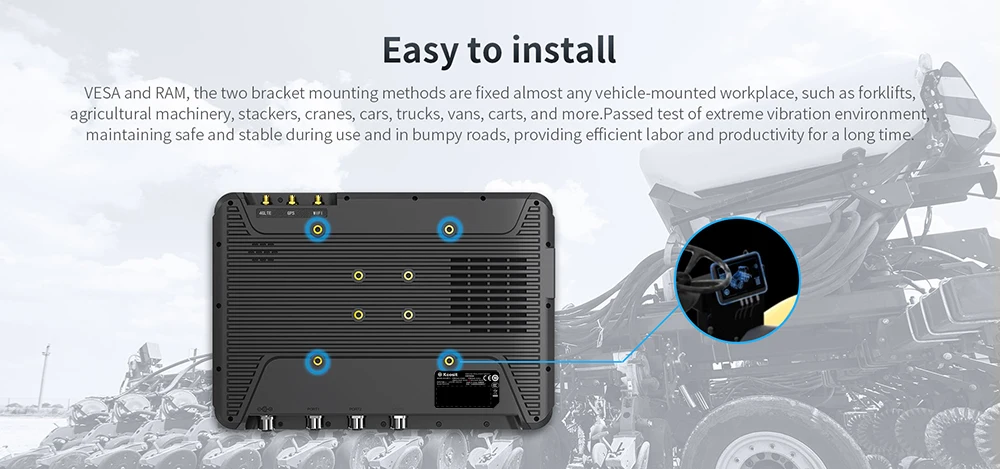

     Vesa                  RAM
    75mm*75mm    38*30mm
    Function adapter cable,Multi function adapter selection,12PIN to 2-way USB 1-way CAN
    Function adapter cable,Multi function adapter selection,
    12PIN to full function RS232 power line + serial communication 485
    Function adapter cable,Multi function adapter selection,
    12PIN to 1000M RJ45
    Function adapter cable,Multi function adapter selection,
    12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection
    Wide voltage module=Optional : ADD  Wide Voltage
    Wide voltage demand when the power supply is unstable,
    External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment



Standard Packge Include:

1. 1X 10.1 inch Tablet
2. 1X WIFI Rod Antenna
3. 1X GPS Rod Antenna
4. 1X 4G Rod Antenna


Tech Spec
Product  Form10.1 inch Vehicle-mount Terminal
Dimension264.5*184.1*23.0 mm
Weight824g
Product ColorBlack
CPUMT 6789,2 Arm® Cortex-A76 cores operating at 2.2 GHz,
6 Arm® Cortex-A55 cores operating at 2.0 GHz
GPUARM G57 MC2
MemoryRAM 4GB  LPDDR3        ROM  64GB    EMMC
Operating SystemAndroid 12
DisplayType: LCD
Size: 10.1 inch 16:10
Resolution:  800*1280 IPS
Brightness: 700cd/㎡  (Follow-up upgrade to 1000cd/㎡)
Touch Pannel5-point tempered glass capacitive screen G+G, hardness 7H
ButtonsPower *1
Volume Adjustment Key (+) *1 (F1 Key)
Volume Adjustment Key (-) *1 (F2 Key)
Customizable *1 (F3 Key)
Customizable *1 (F3 Key)
Indicator Light1. Power indicator (blue when starting)
2. Charging lamp (red when DC is powered on)
3. Full charge indicator light (green when full with battery, not on when no battery)
Speaker2.5W *1, Single horn
MicrophoneSingle MIC
RTCBuilt in 2032 RTC dry battery
Battery(Optional)Built in polymer lithium ion battery
2000mAh/3.7V

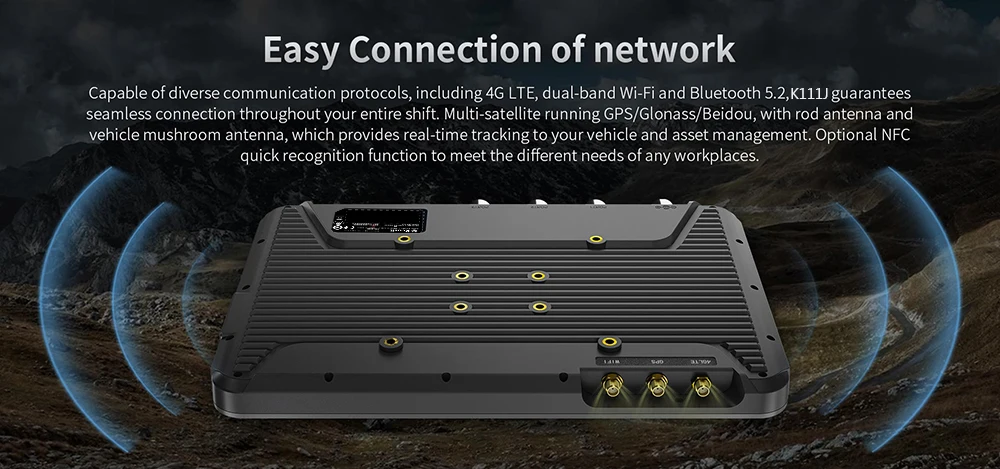

WIFIWIFI 802.11(a/b/g/n/ac)  Dual frequency 2.4G+5.8G Others: Support AP seamless roaming
BluetoothBT 5.2 isochronous channels feature  BLE_125K -104 dBm
4GLTE Cat 4
GSM:2+3+5+8
WCDMA:1+2+5+8
TD-S:34+39
TDD:38+39+40+41N(2535mhz~2655mhz)
FDD:1+2+3+4+5+7+8+17+20+28a+28b
GPSSupport GPS(L1 1.575GHz C/A code),Beidou(B1 1.561GHz),GLONASS(L1 1.602GHz)
NFCOptional, NFC IC:NXP557
HF band 13.56MHz,compatible with EMVCo standard
Support protocols:ISO15693,ISO14443:ISO14443Type A,ISO14443Type B

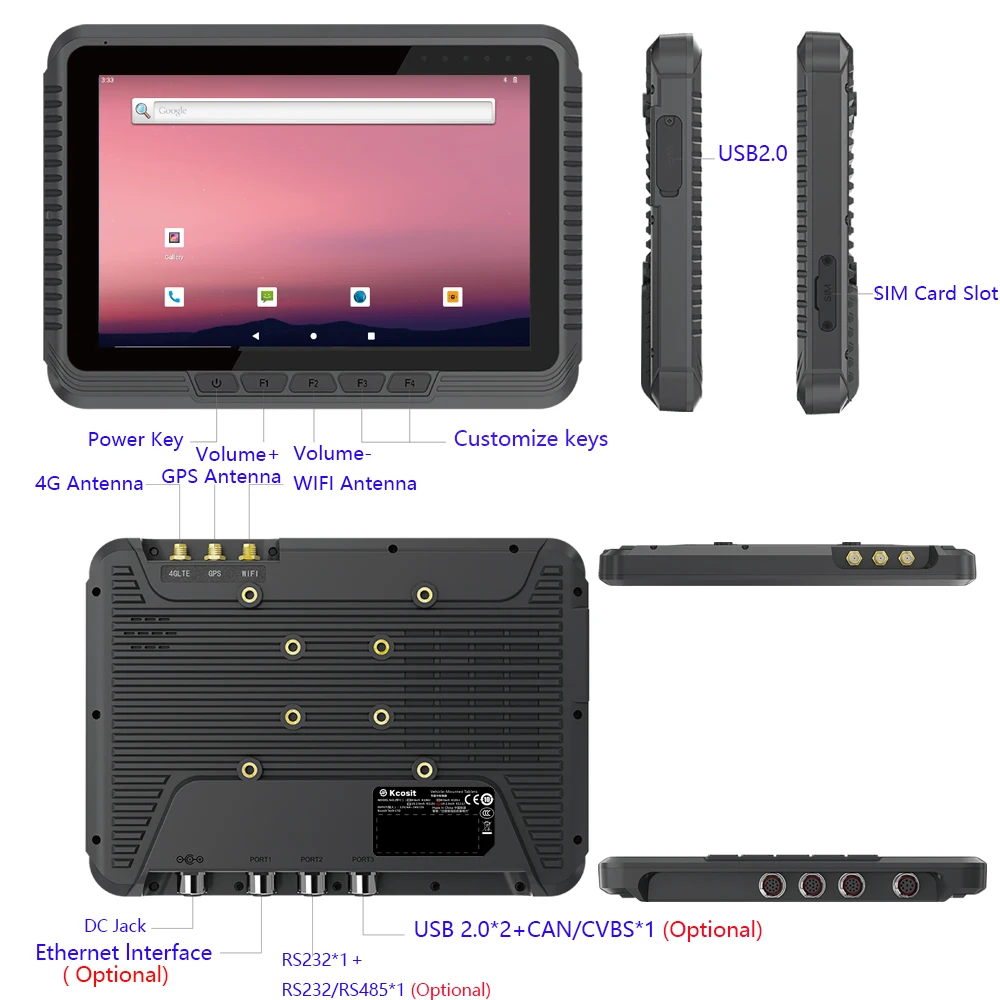

InterfaceSIM card slot
Nano-SIM *1
Standard USB-A port / Data transmission
USB 2.0 *1, USB A port, HOST data transmission
  Power interface
DC input(Input: 12V)

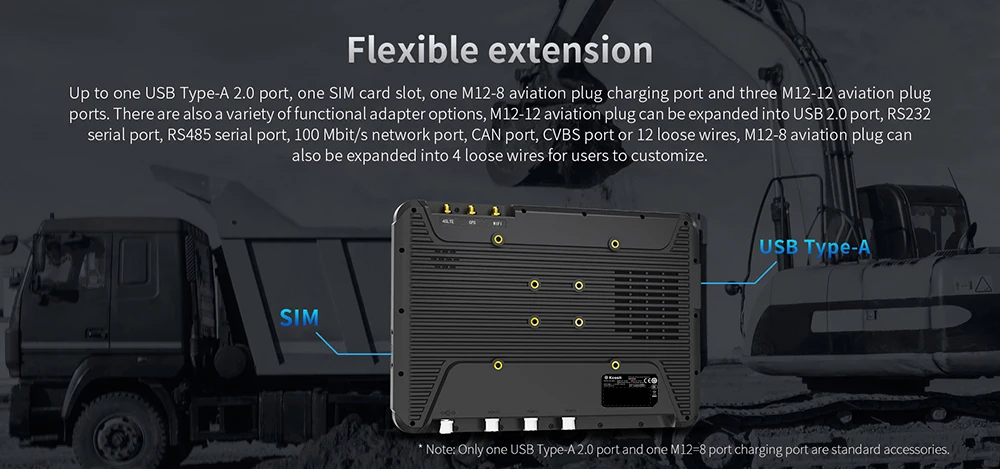

PORT1(M12-12)(optional)
100M network port,
Standard 8 pin Ethernet signal (100M Fast Ethernet)
PORT2(M12-12)(optional)
RS232 *1+RS232/RS485(standard) *1,
9PIN DB9 full-featured serial port RS232; 3PIN data transmission RS485 (default) / 3PIN data transmission RS232
PORT3 (M12-12)(optional)
USB 2.0 *1+USB(Default)/CAN*1+CVBS *1,
USB2.0 standard interface *2; Optional CAN for customer debugging
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
±8kV contact discharge, ±15kV air discharge
Humidity: 95% Non-Condensing
CertificationIP65
CE
CCC
FCC

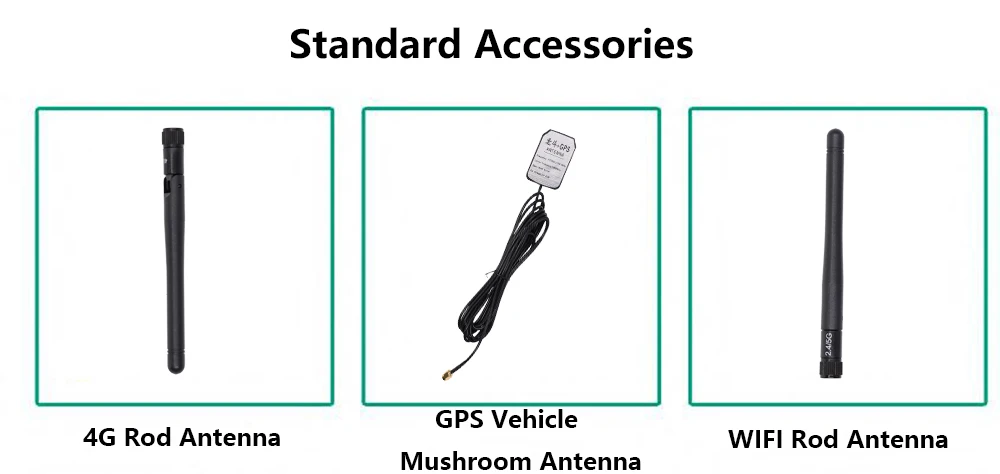

Standard AccessoriesWIFI rod antenna
2.4~2.5GHZ /5.15~5.85GHz ,2±0.5 dBi
GPS vehicle mushroom antenna
Active GPS mushroom antenna, line length 3M, 28dBi±2dBi
4G rod antenna
Frequency Range:824~960/1710~2700MHz
Return Loss:-6dB or less
Frequency Range:3.4~3.8/4.4~4.9GHz
Return Loss:-10dB or less Gain:2.0±0.2 dBi
Power adapter cablePower adapter cable
Transfer 8 pin aviation plug to φ4.0 power port  (suitable for cigarette lighter car charger,30cm) to meet the customer's 220V input use.

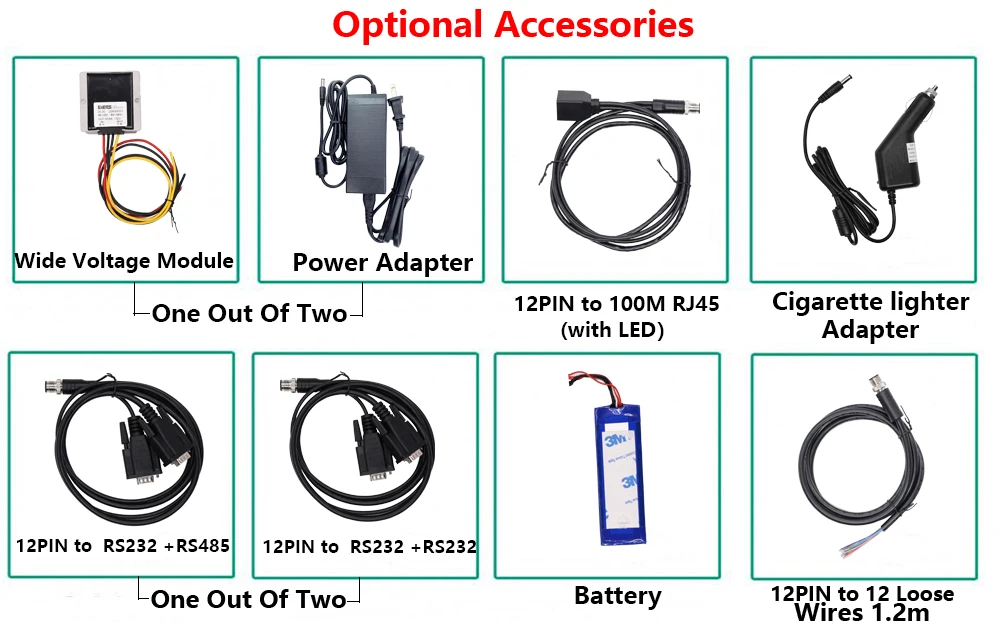

Optional AccessoriesPower adapter
19V4A  DC φ5.5 power adapter
Wide voltage module
Wide voltage demand when the power supply is unstable,
External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment
Bracket
RAM 38*30mm ball head
Bracket
VESA 100*100
Function adapter cable
Multi function adapter selection,
12PIN to USB 2.0 *1+USB 2.0*1(Default)/CAN*1+CVBS*1
Function adapter cable
Multi function adapter selection,
12PIN to full function RS232 power line+serial communication 485
Function adapter cable
Multi function adapter selection,
12PIN to full function RS232 power line + serial communication 232
Function adapter cable(Need to rebuild 4G small board and add LAN)
Multi function adapter selection,
12PIN to 100M RJ45(with LED)
Function adapter cable
Multi function adapter selection,
12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection
GPS rod antenna
